(Ongoing) nRF54LI5-DK Set up

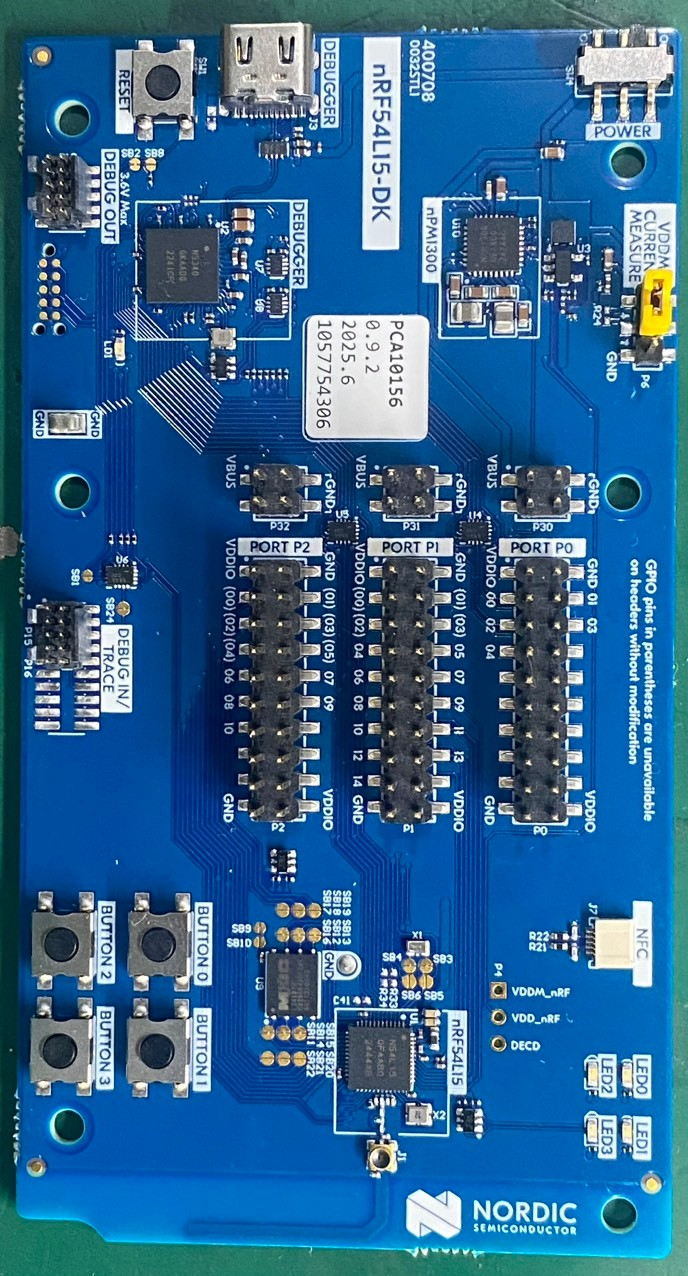

Hardware introduction, dev kit pin review

nRF54LI5-DK Dev-kit

Power pin set up

This product a lign of header, short 2 pin on header change the way pin is managed

P6 - 3 pin 2.54 header, using a jumper to short for current measurement or power supply only

_Current measurement: R24 is used as a shunt resistor, to measure how much current the dev kit consume. Apply this to measure power on the module.

_Power Supply: Shorting pin  to supply power only







Software



Download and configure the environment through VS Code.
