Application Note - Using 12W Module for Power Measurement application

In order to use Aux power to supply the power measure IC. We need  a little modification in PCB:

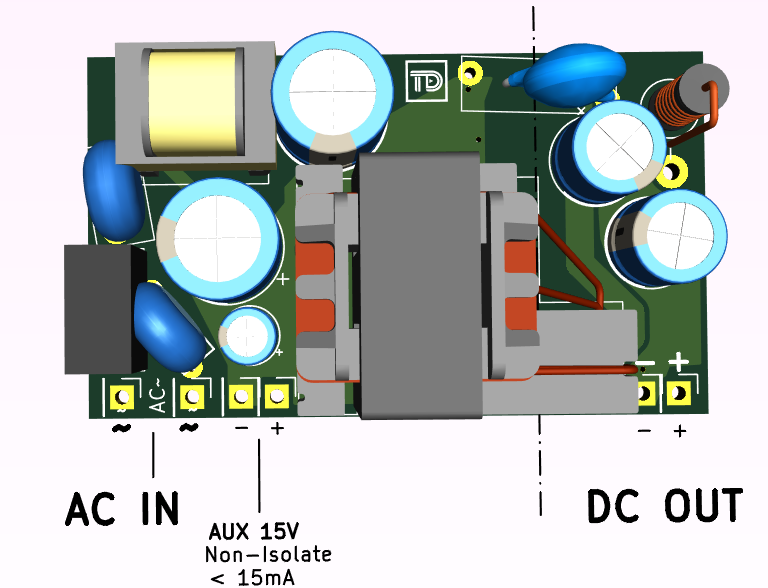

Original Version:

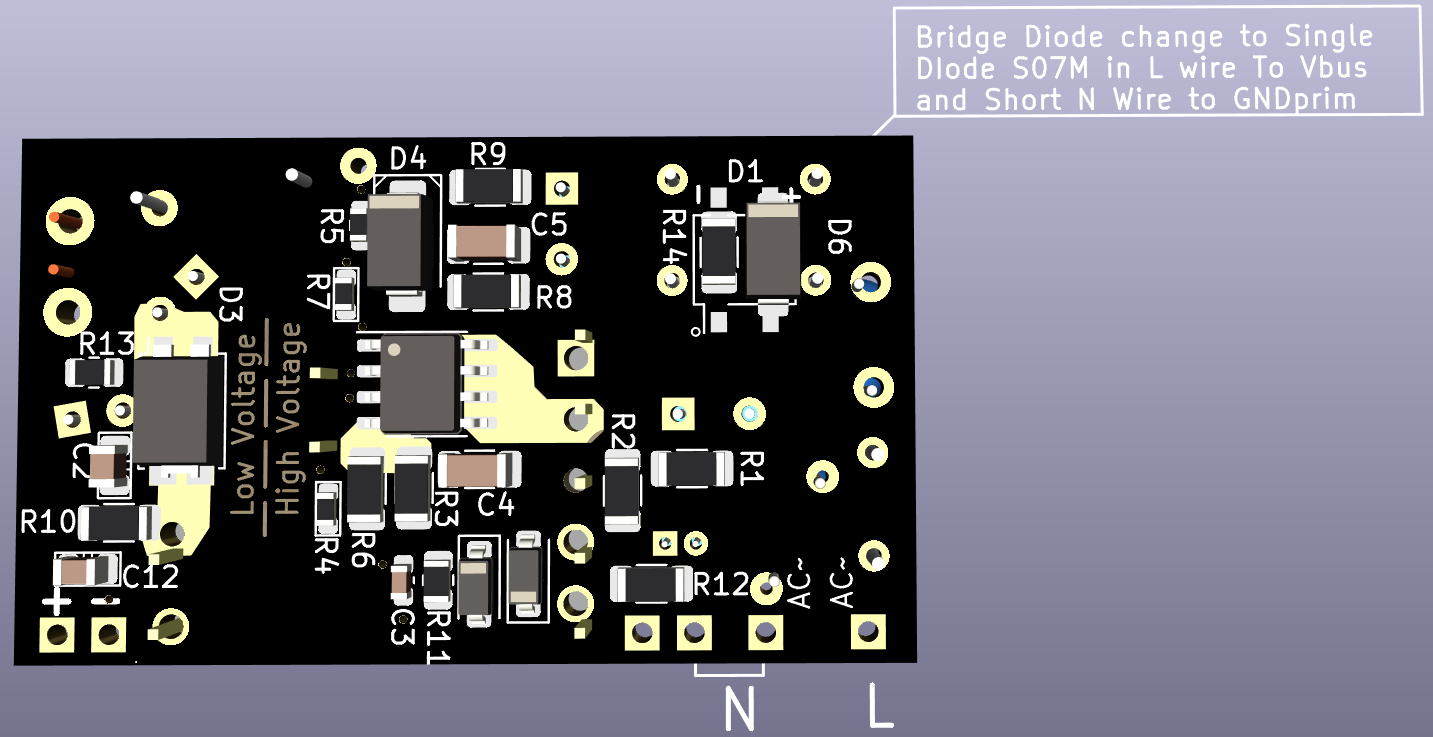

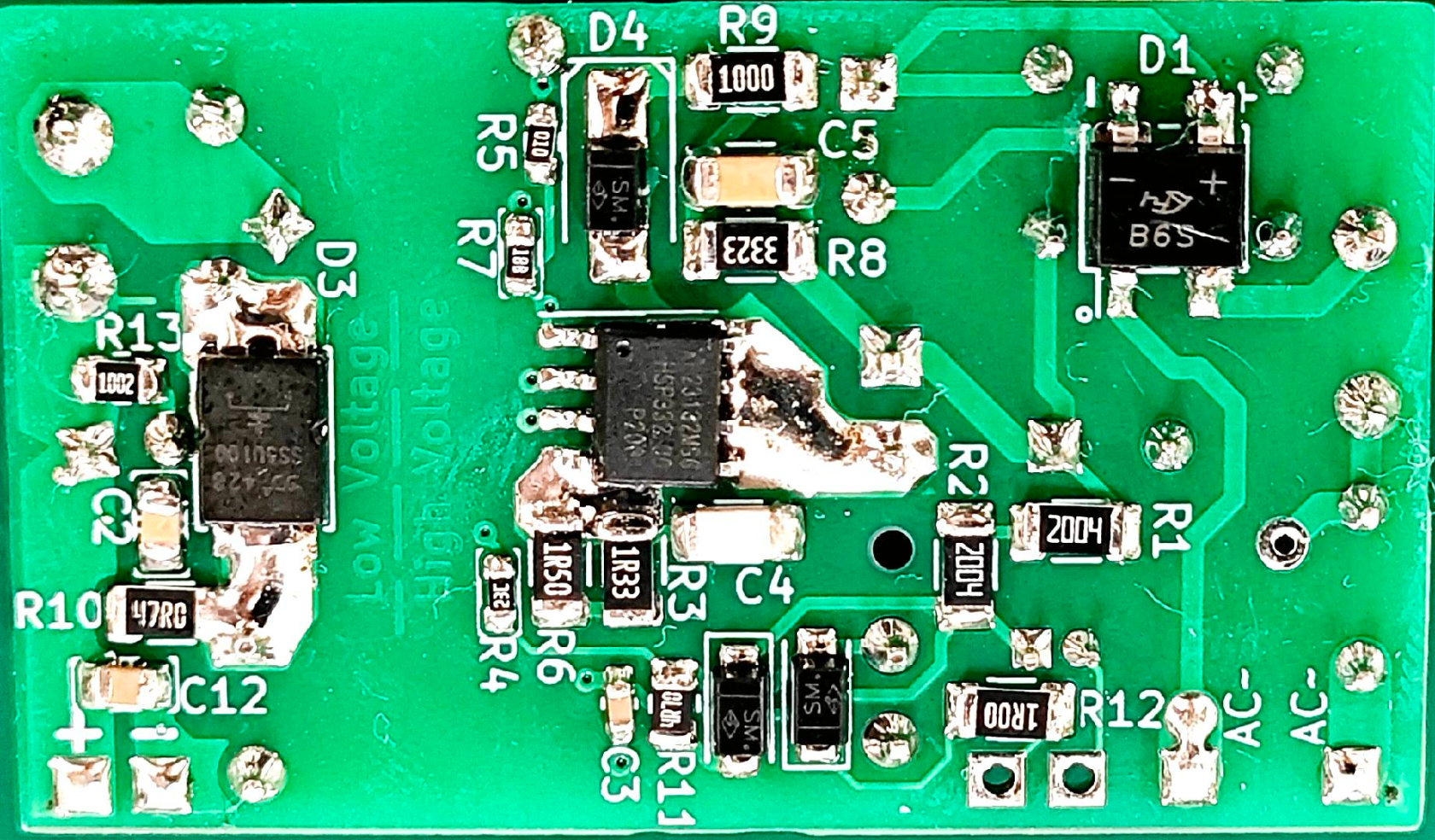

Modification need:

List of change Part:
D1 -> DNP
D6 - SM07 / 1N4007
R14 -> 0R 1206

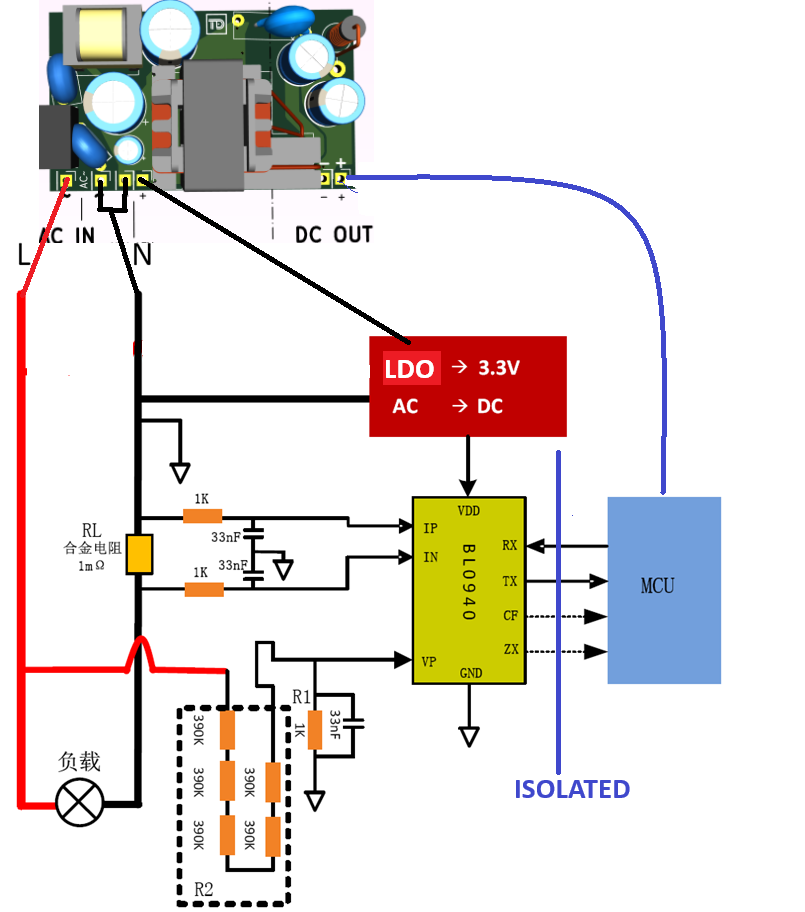

Example Schematic
