# Power Metter

# TDM2502-Production

File pick and place: [iBOM\_2502.html](https://docs.tdlogy.com/attachments/37)
Lưu ý: Module ESP32-C3-Wroom-02 lấy từ module c3 super nano bữa làm mẫu

3D Mẫu:

[![image.png](https://docs.tdlogy.com/uploads/images/gallery/2025-06/scaled-1680-/RoOjtKRDH8QEPMWN-image.png)](https://docs.tdlogy.com/uploads/images/gallery/2025-06/RoOjtKRDH8QEPMWN-image.png)

# TDM2507-Power Metter Uart

<table border="1" id="bkmrk--1" style="border-collapse: collapse; width: 100%;"><colgroup><col style="width: 50%;"></col><col style="width: 50%;"></col></colgroup><tbody><tr><td>[![image.png](https://docs.tdlogy.com/uploads/images/gallery/2025-06/scaled-1680-/2mGFJrzEGNaLa9dp-image.png)](https://docs.tdlogy.com/uploads/images/gallery/2025-06/2mGFJrzEGNaLa9dp-image.png)</td><td>[![image.png](https://docs.tdlogy.com/uploads/images/gallery/2025-06/scaled-1680-/vsM8VZ6sGrtsIUR8-image.png)](https://docs.tdlogy.com/uploads/images/gallery/2025-06/vsM8VZ6sGrtsIUR8-image.png)</td></tr></tbody></table>

File gia công: [iBOM\_2507.html](https://docs.tdlogy.com/attachments/36)

Note: Tụ 33nF hỏi anh Vinh

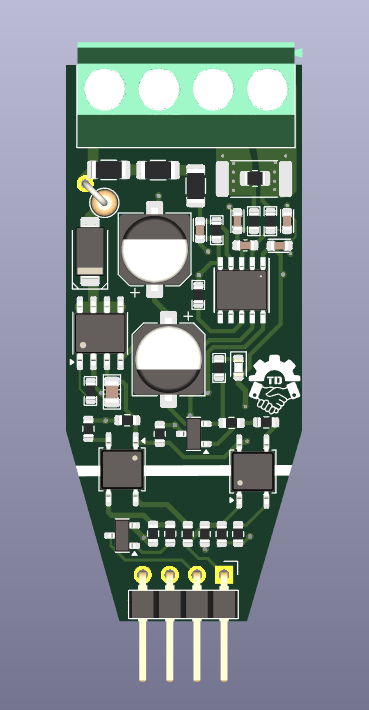

Vị trí linh kiện có thể khác chút so với pcb thực tế, căn theo tương tự mà lắp nha.
